   Projects

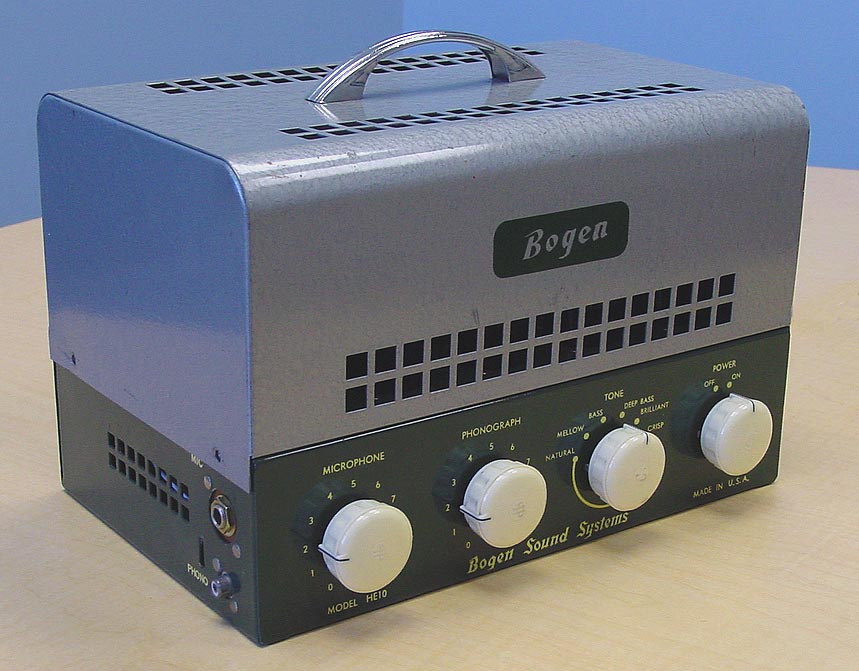

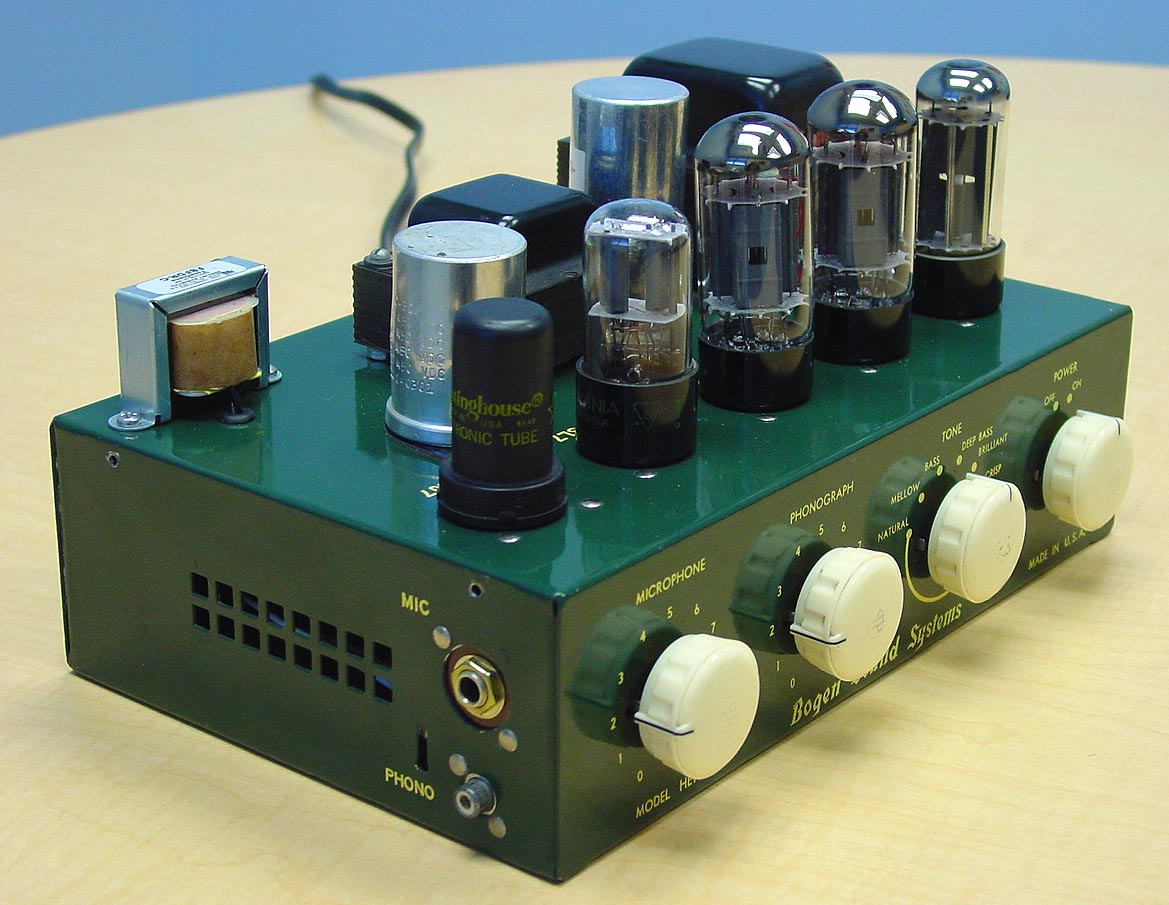

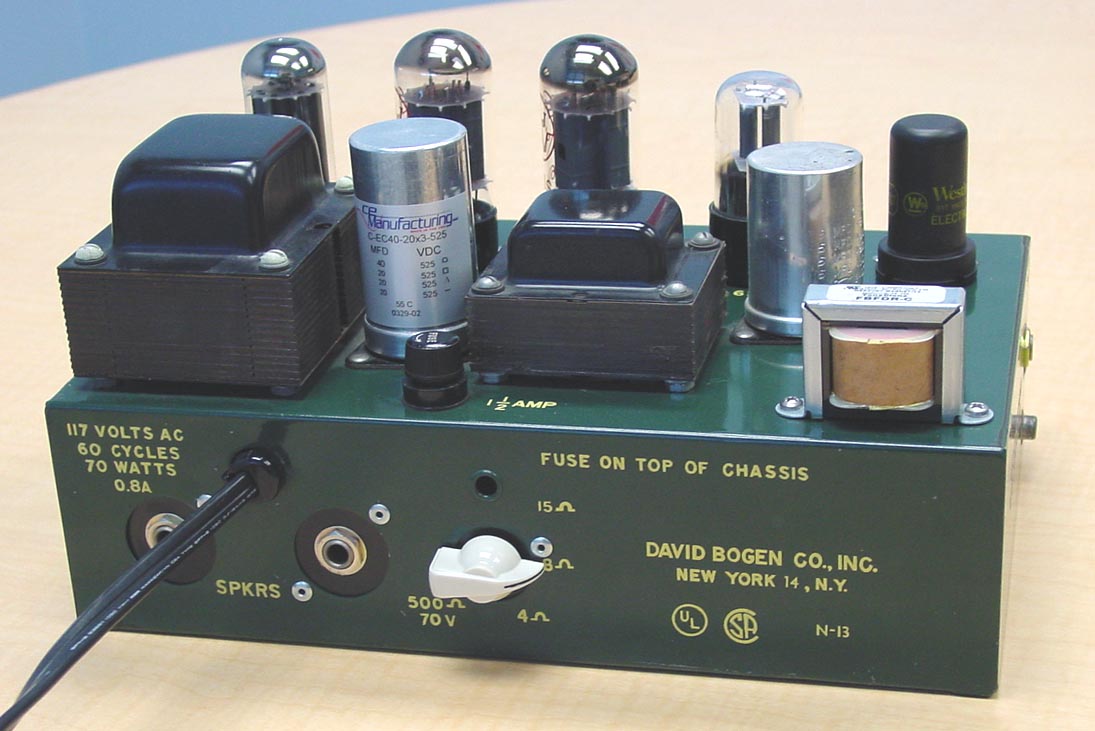

Bogen HE10

 1952 Bogen toaster classic - features dual 6V6GT's & 6SJ7 pentode input tube. Voiced for guitar and harp with negative feedback tone pre-sets.

Projects (return to top)

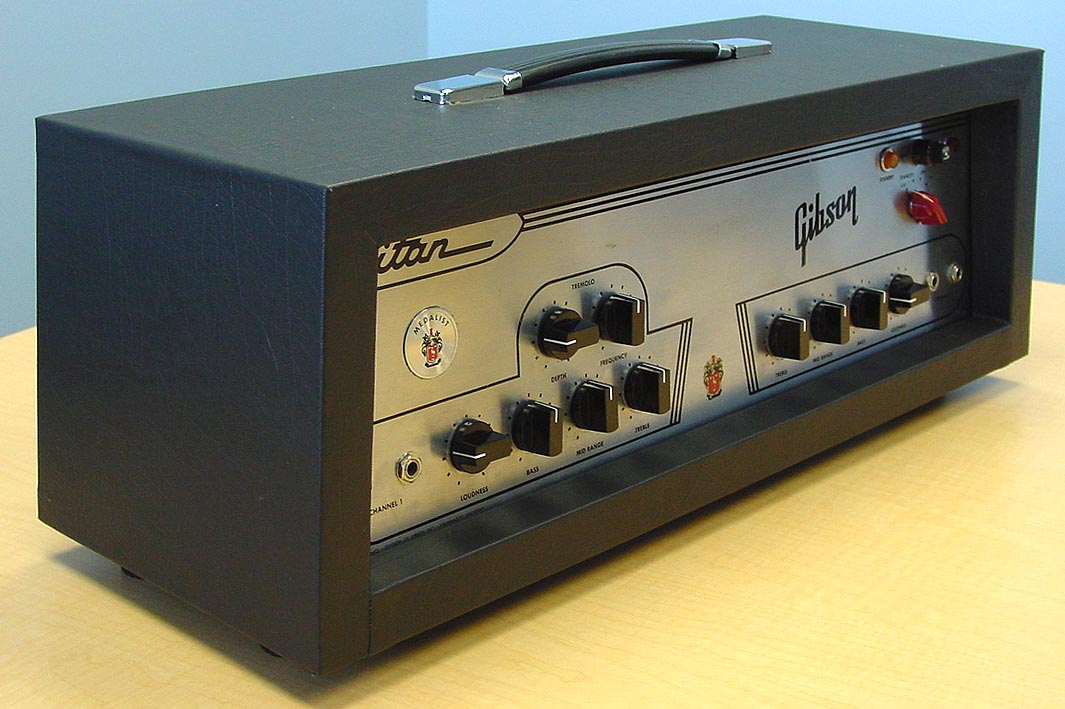

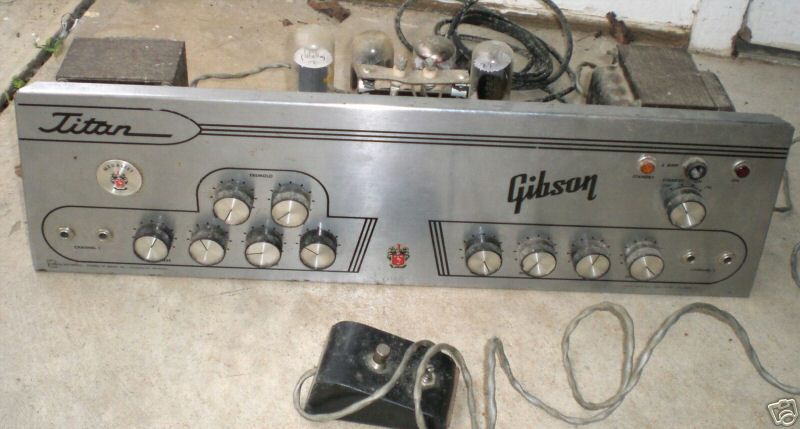

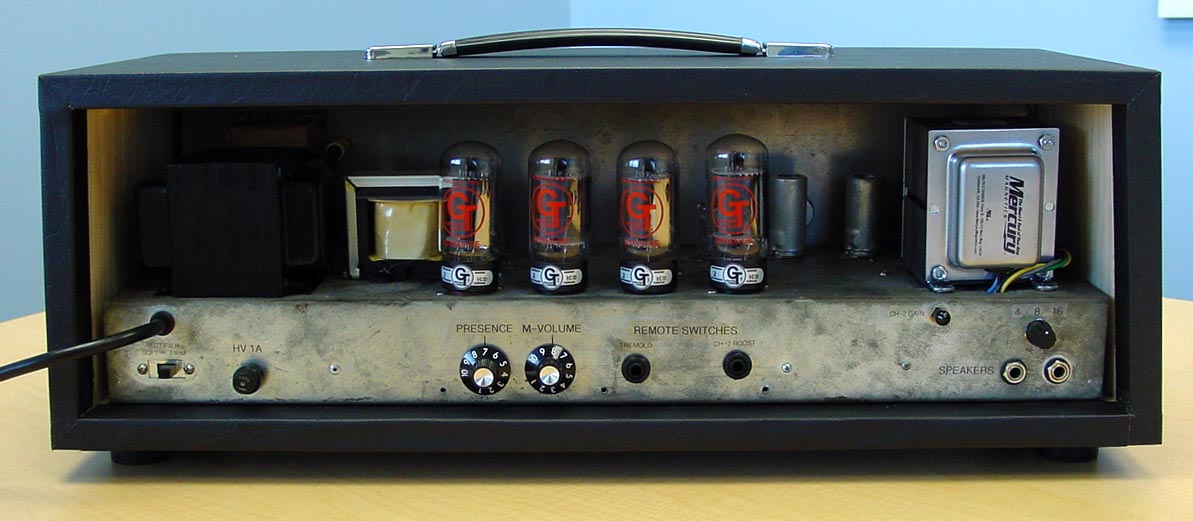

GIBSON TITAN MEDALIST

This one was rescued off ebay and features new rear located master volume & presence controls, Mercury output transformer, remote gain boost, firm/spongy rectifier switch, new knobs and a custom cabinet.

Projects (return to top)

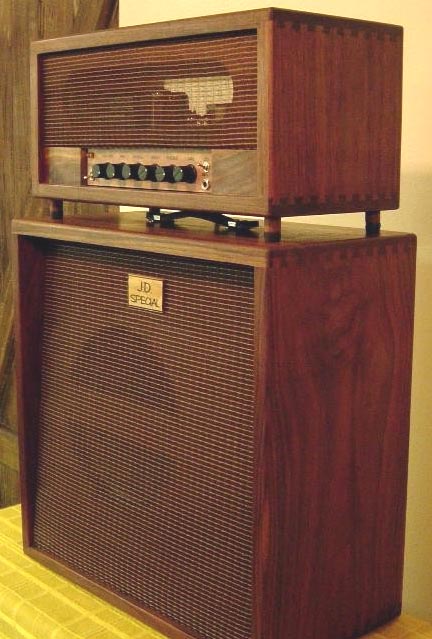

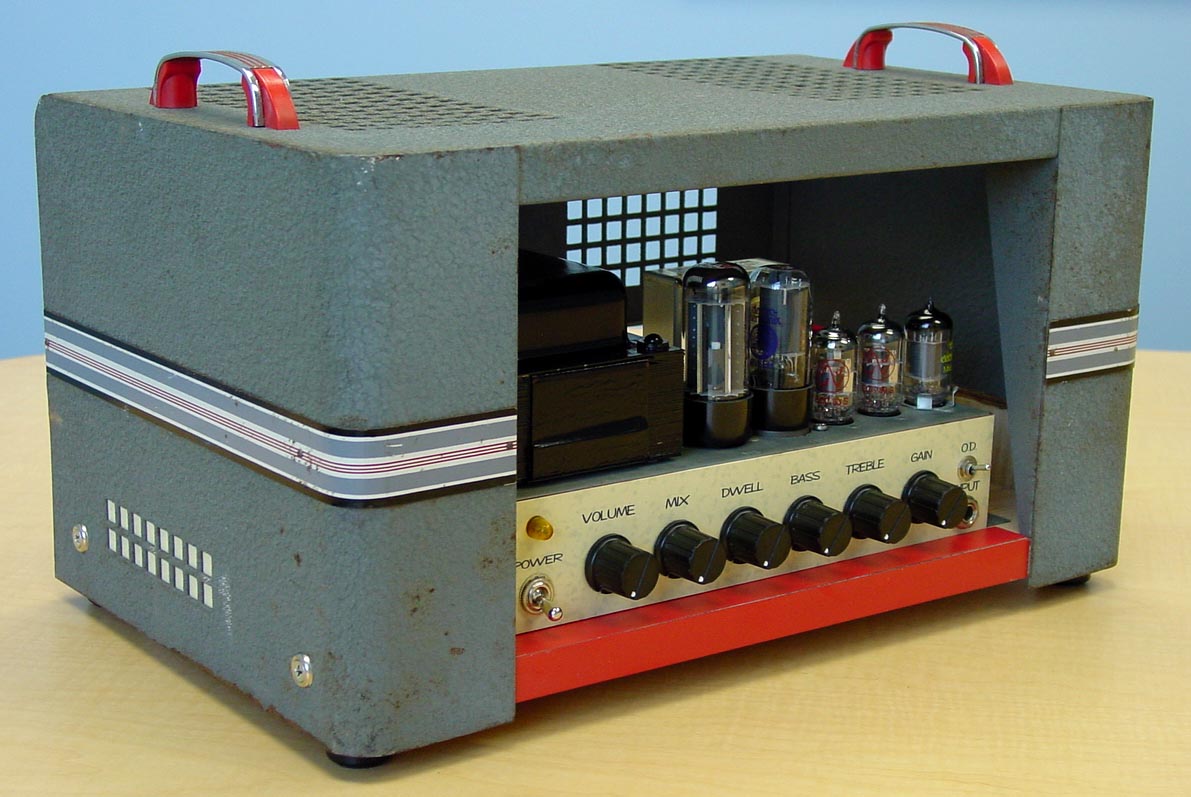

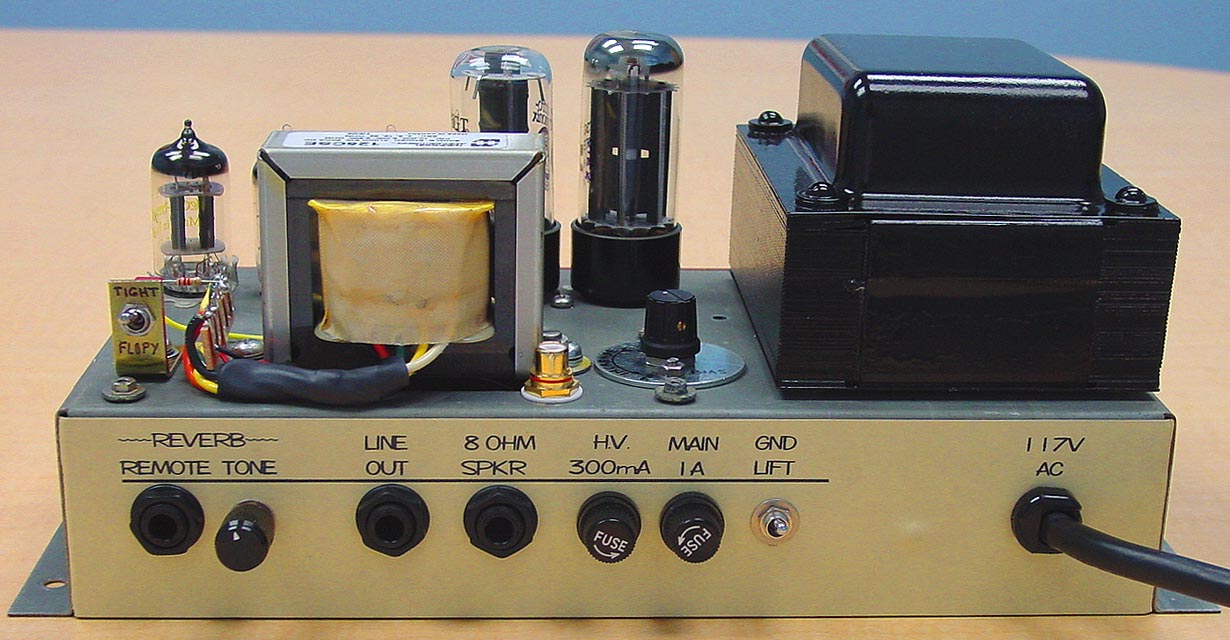

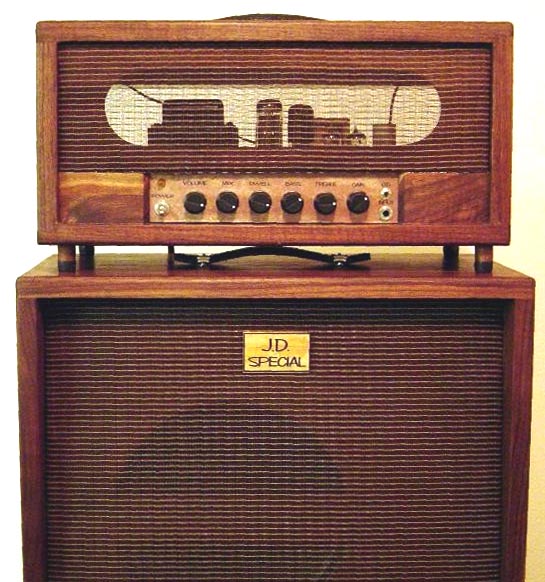

JD SPECIAL

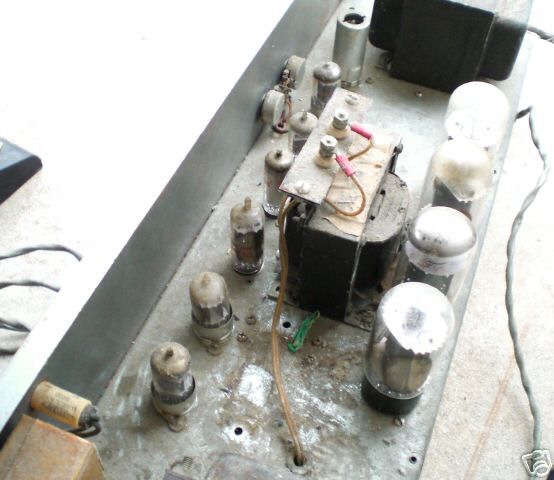

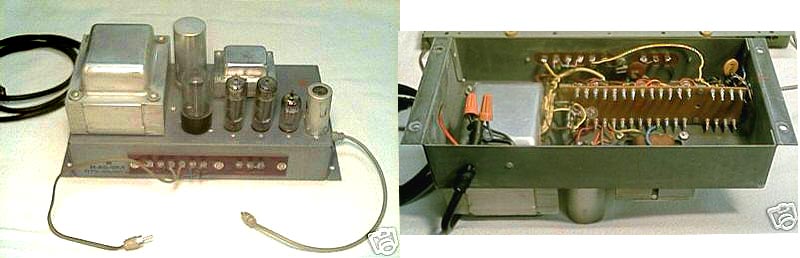

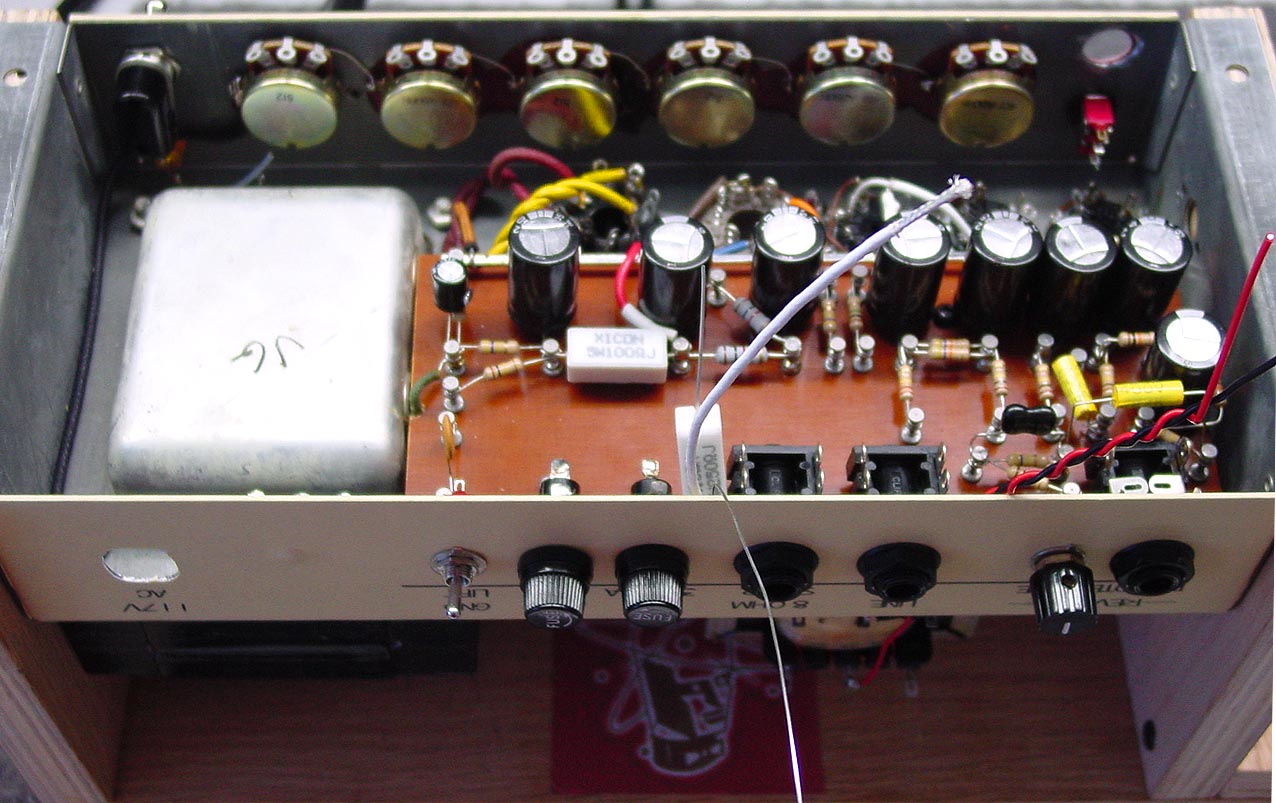

We started with an old Hammond organ reverb amp chassis and transformed it into a single ended tone machine that accepts most 8 pin output tubes.  Has a custom circuit board and front/rear panels.

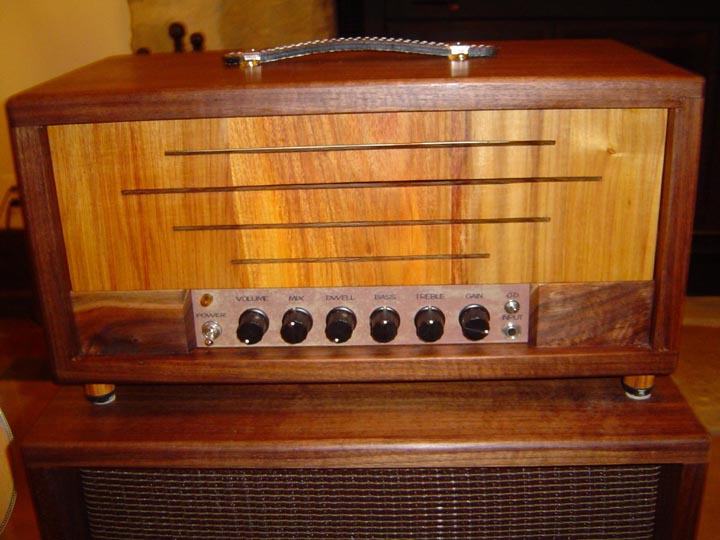

Three versions of the cabinet are shown here, one is from a 50's Bogen PA amp and the other two were custom built using walnut & canary stock. The speaker cabinet has a thin canary wood baffle front & rear w/12 inch Celestion V30.


Projects (return to top)

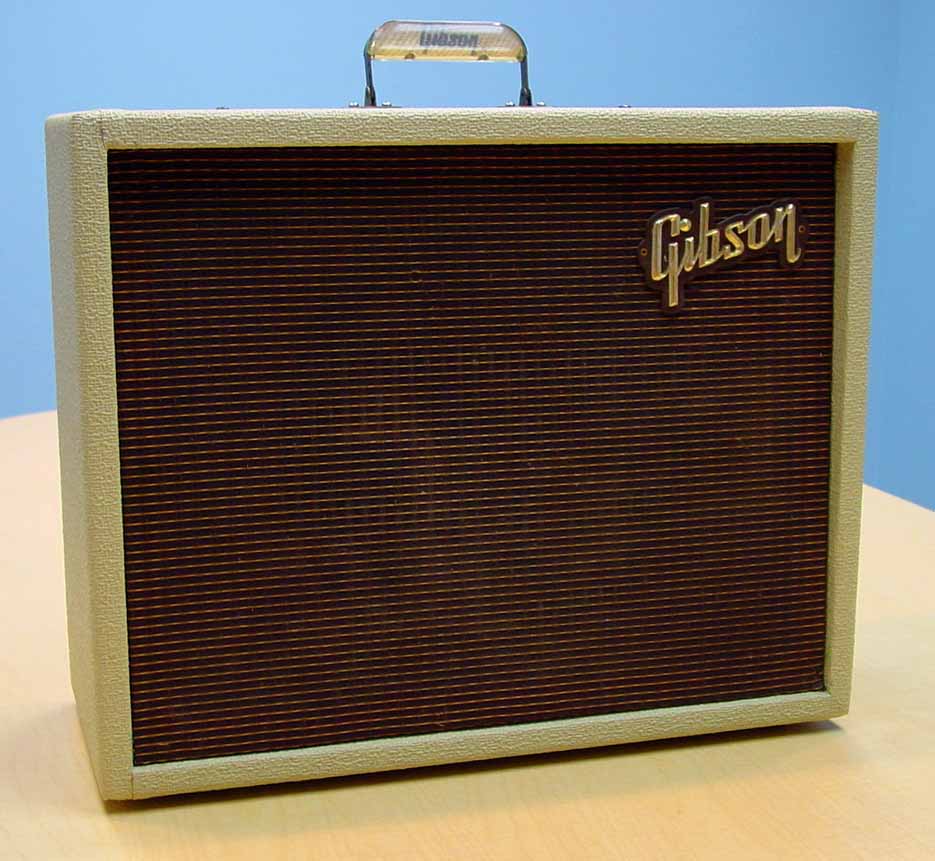

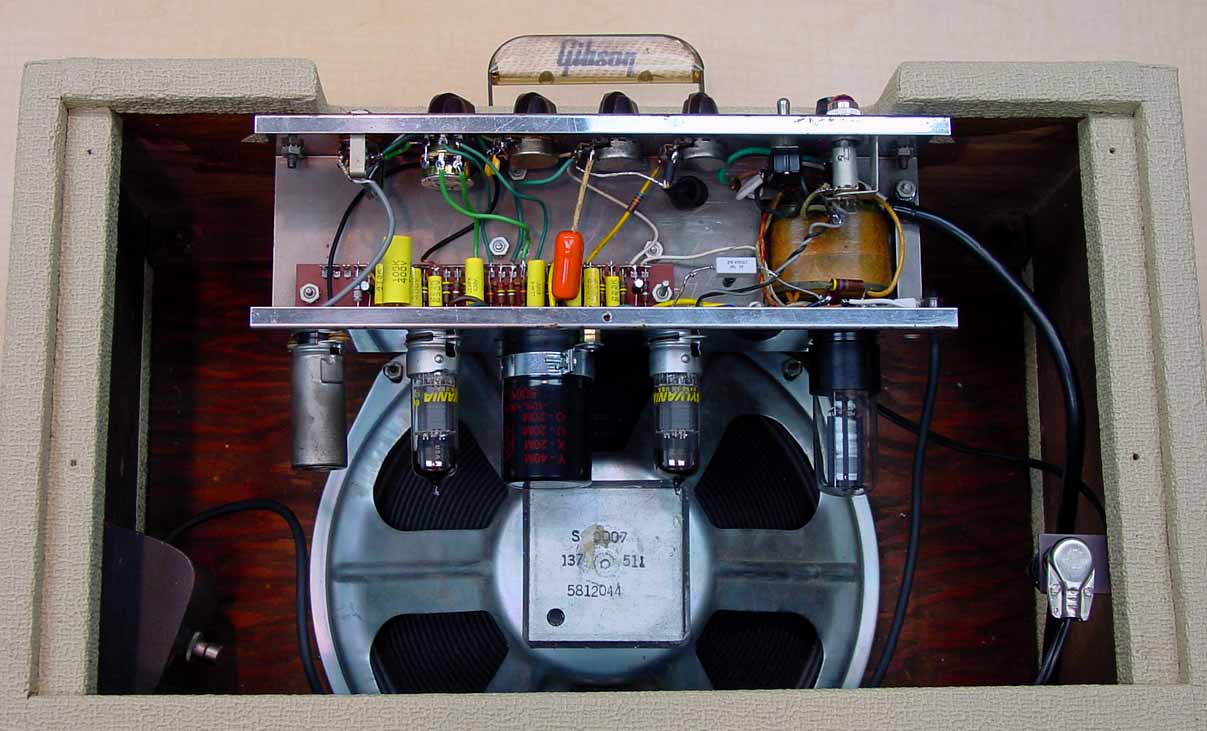

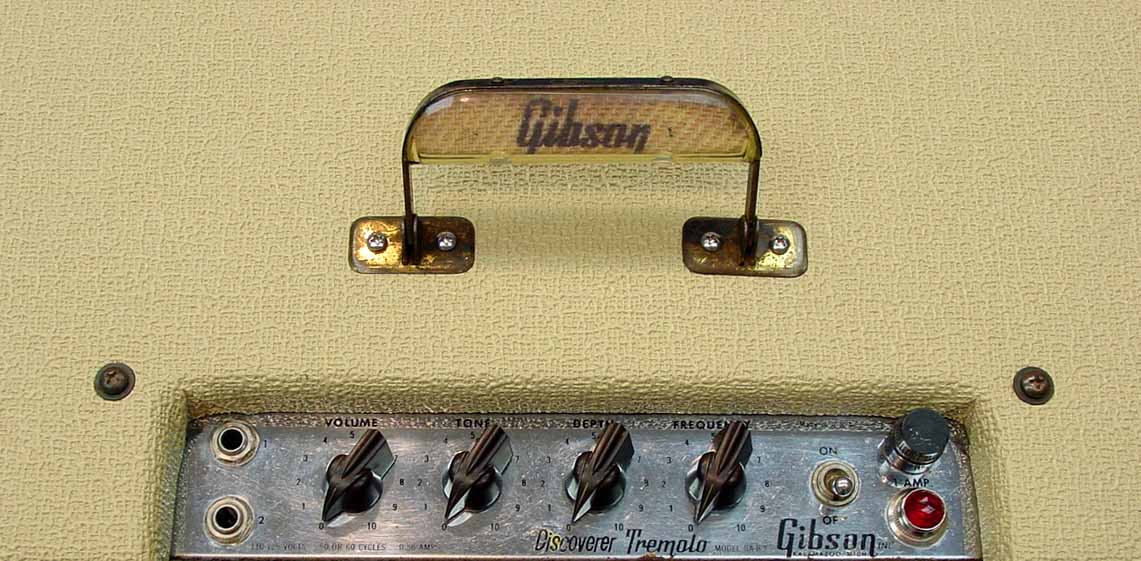

  GIBSON GA-8

Fully restored tweed era classic that has unique 6BM8 output tubes.

Projects (return to top)

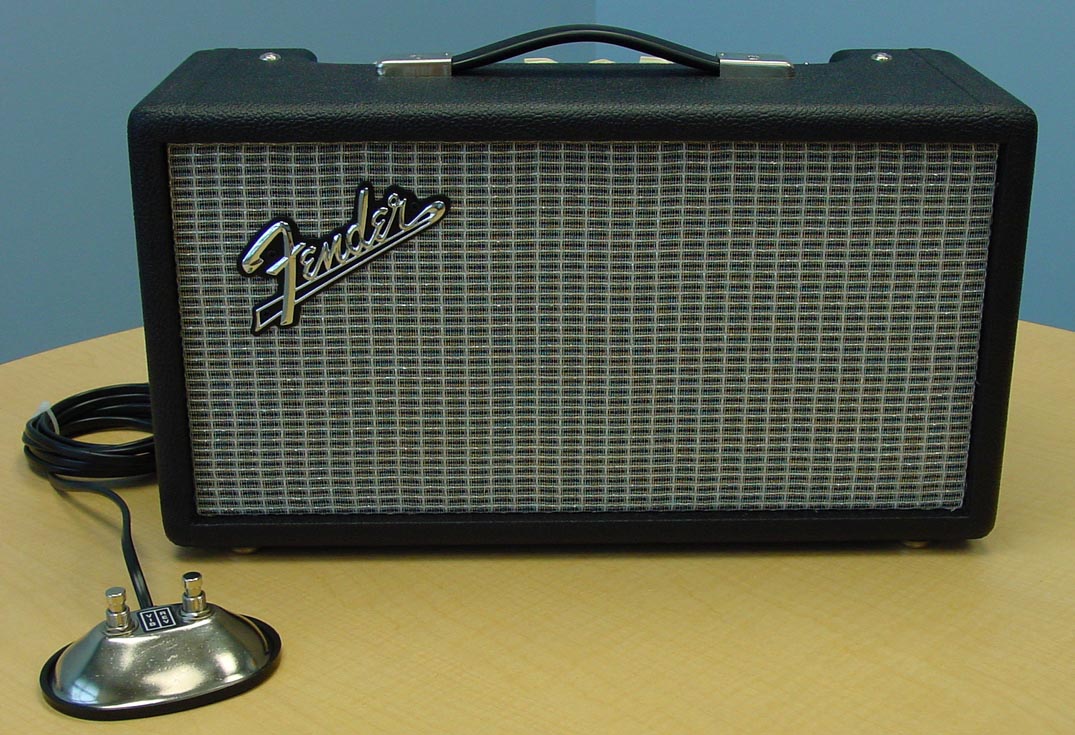

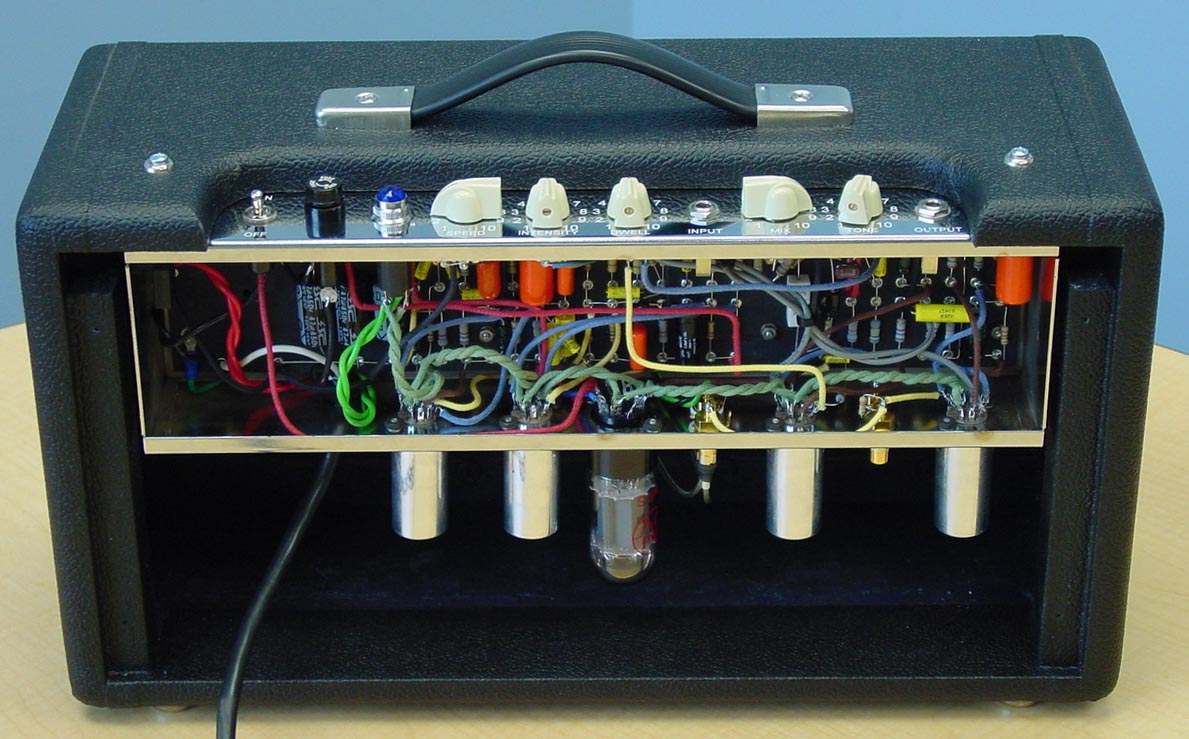

FENDER RE-VIBE 5H15  (Jeff Gehring Design)



Combines two of Fender's best effects, the tremolo from a brown 1962 Concert 6G12 plus the stand alone reverb circuit from a 6G15.

Projects (return to top)

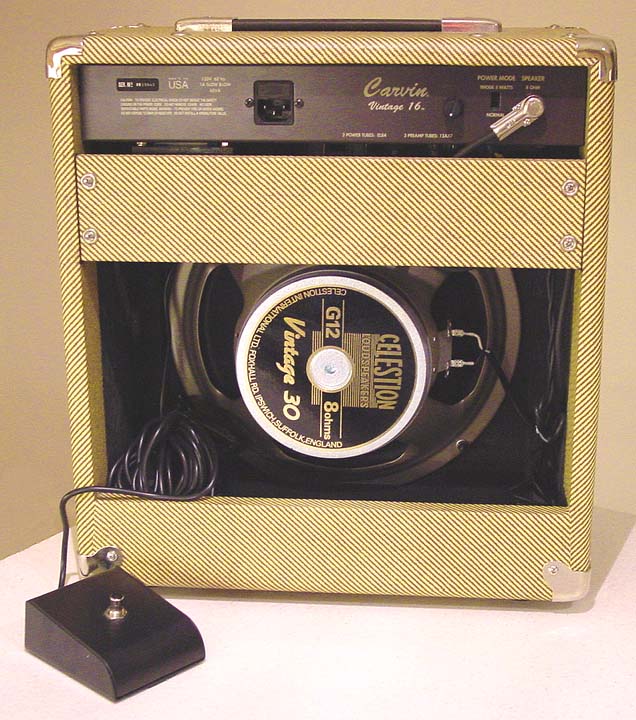

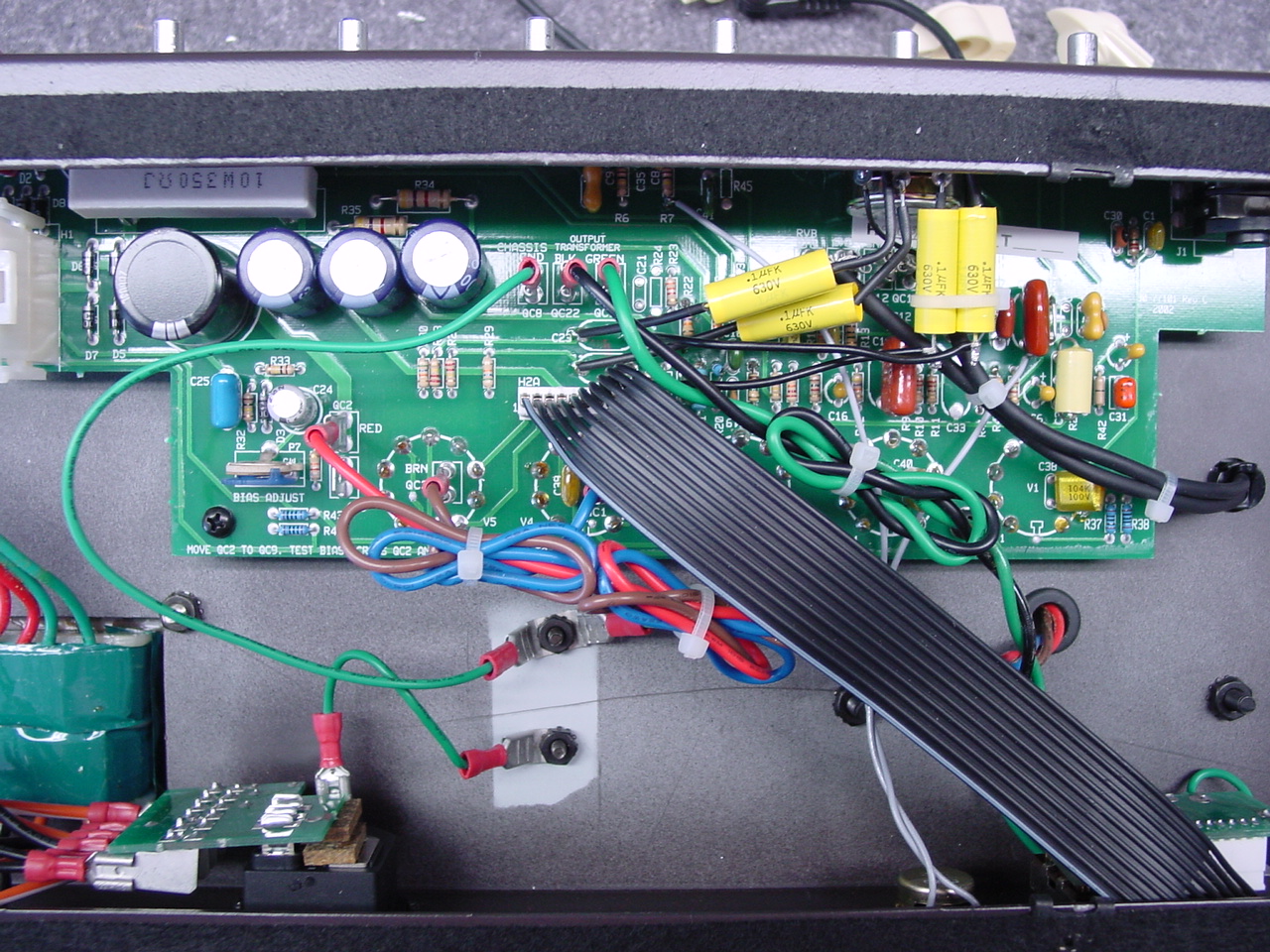

CARVIN VINTAGE 16 EXTREME



With a new post PI master volume and reclaimed gain, plus a few other goodies it becomes a Mesa Boogie in disguise at half the price.

Projects (return to top)

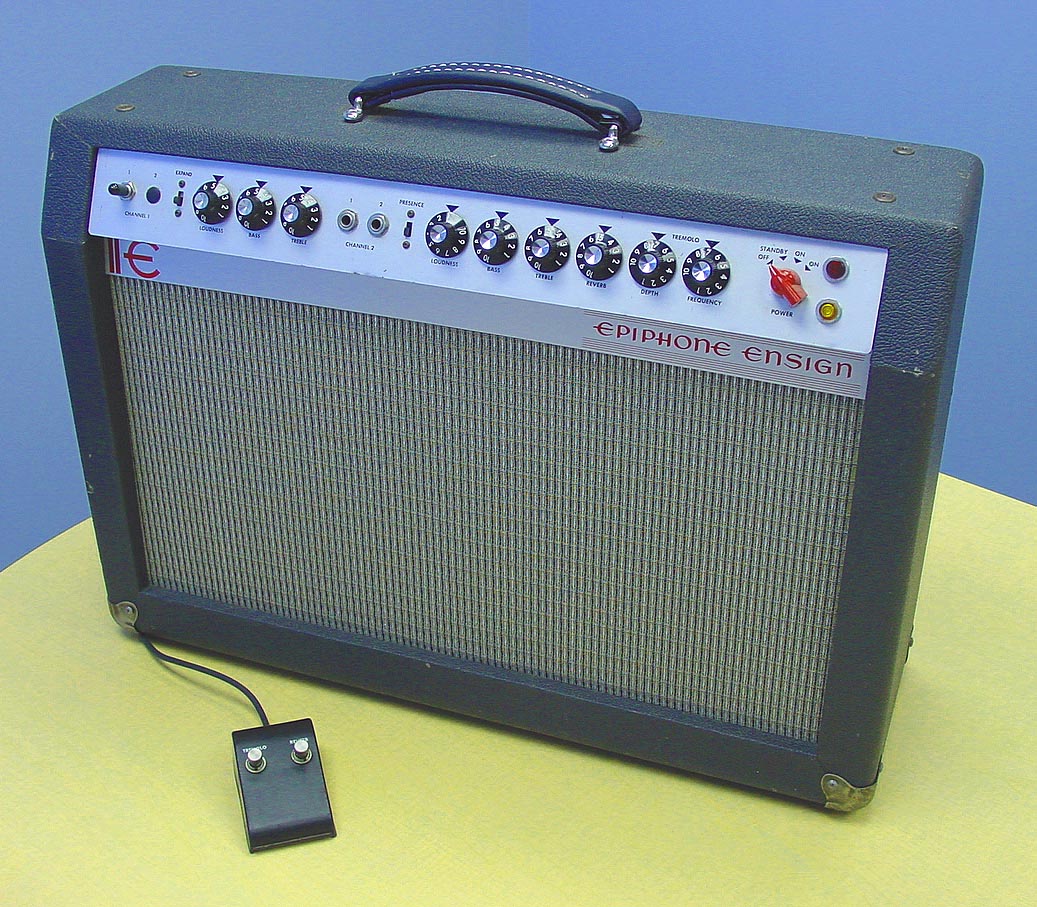

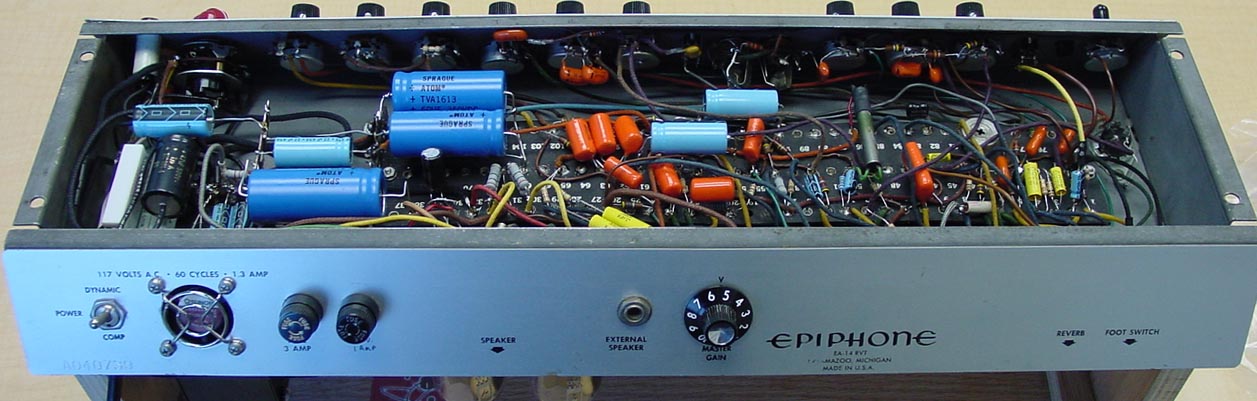

EPIPHONE ENSIGN EA-14RVT



Fully restored plus new knobs, a rear master volume control, and cooling fan.

Projects (return to top)

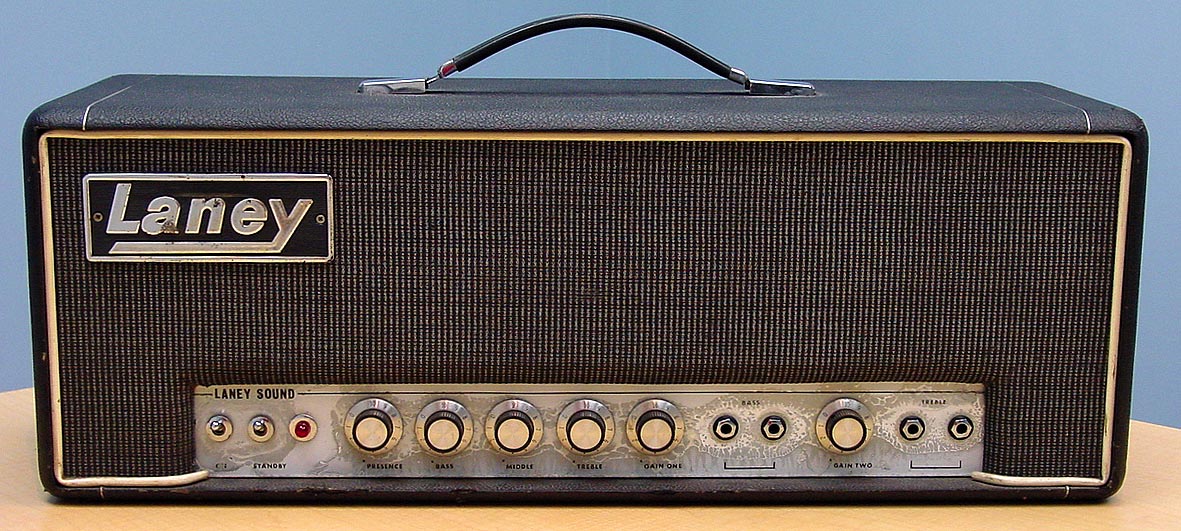

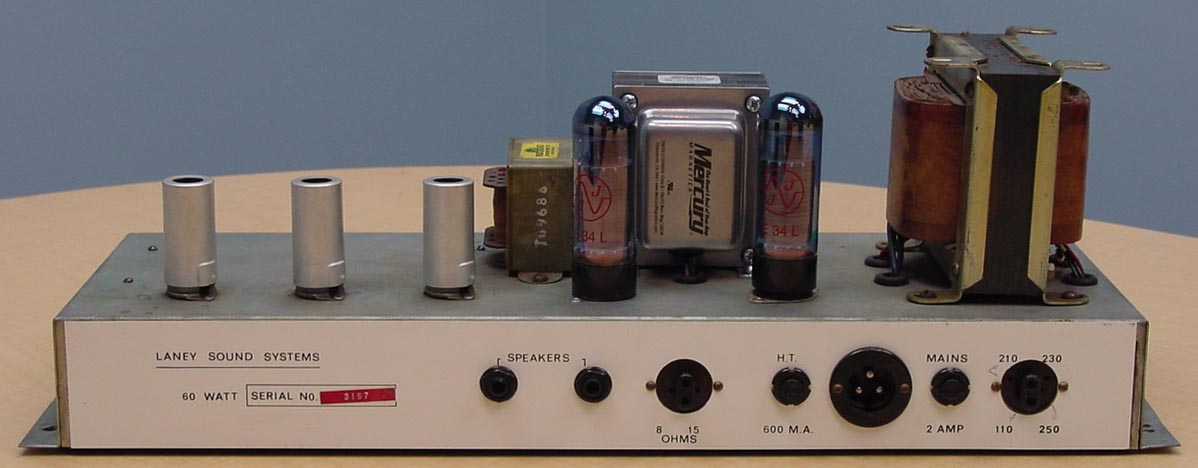

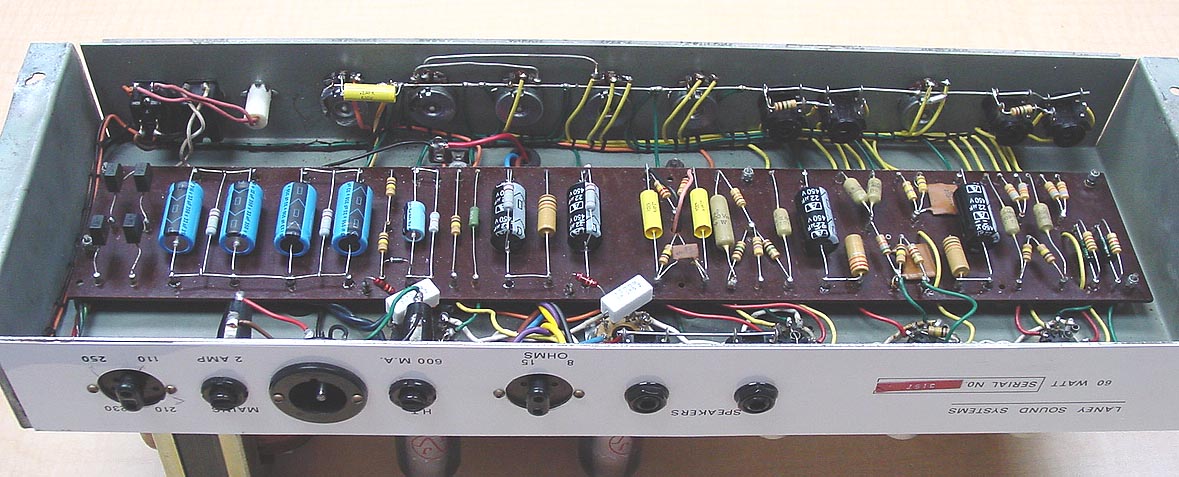

LANEY SUPERGROUP

Rare 60 watt plexi with new Mercury output transformer.

Projects (return to top)

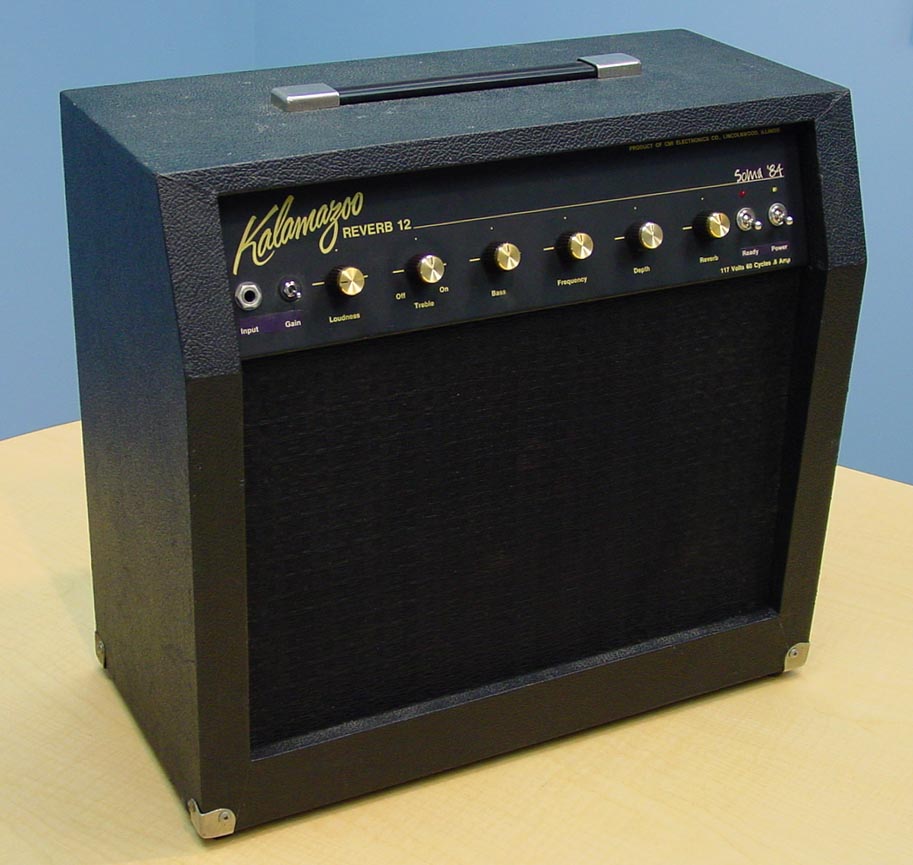

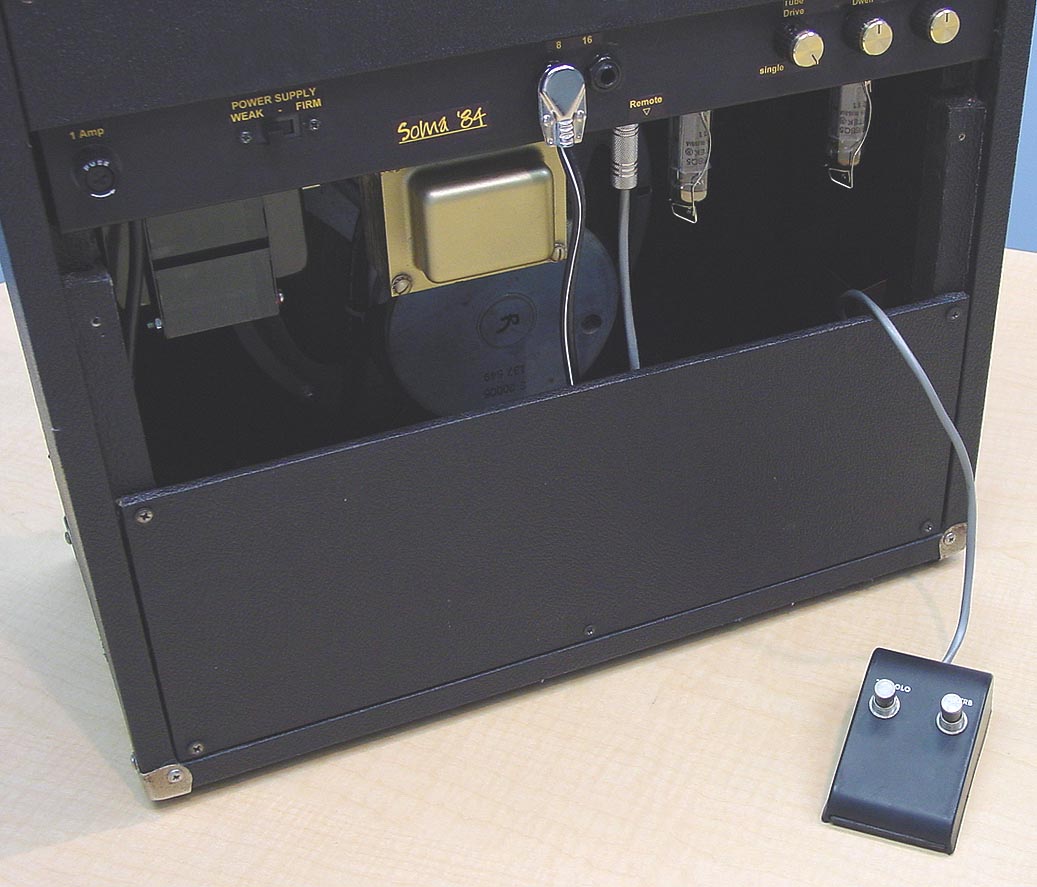

KALAMAZOO REVERB-12





This project is based on a Kevin O'Connor circuit design (Soma '84, TUT-5). packed into a Reverb-12 combo package.  Features digital reverb, wide range solid state tremolo, 10 inch vintage CTS speaker, an oversized power supply and output transformer.  Dig the groovy graphics from the original catalog!

Projects (return to top)

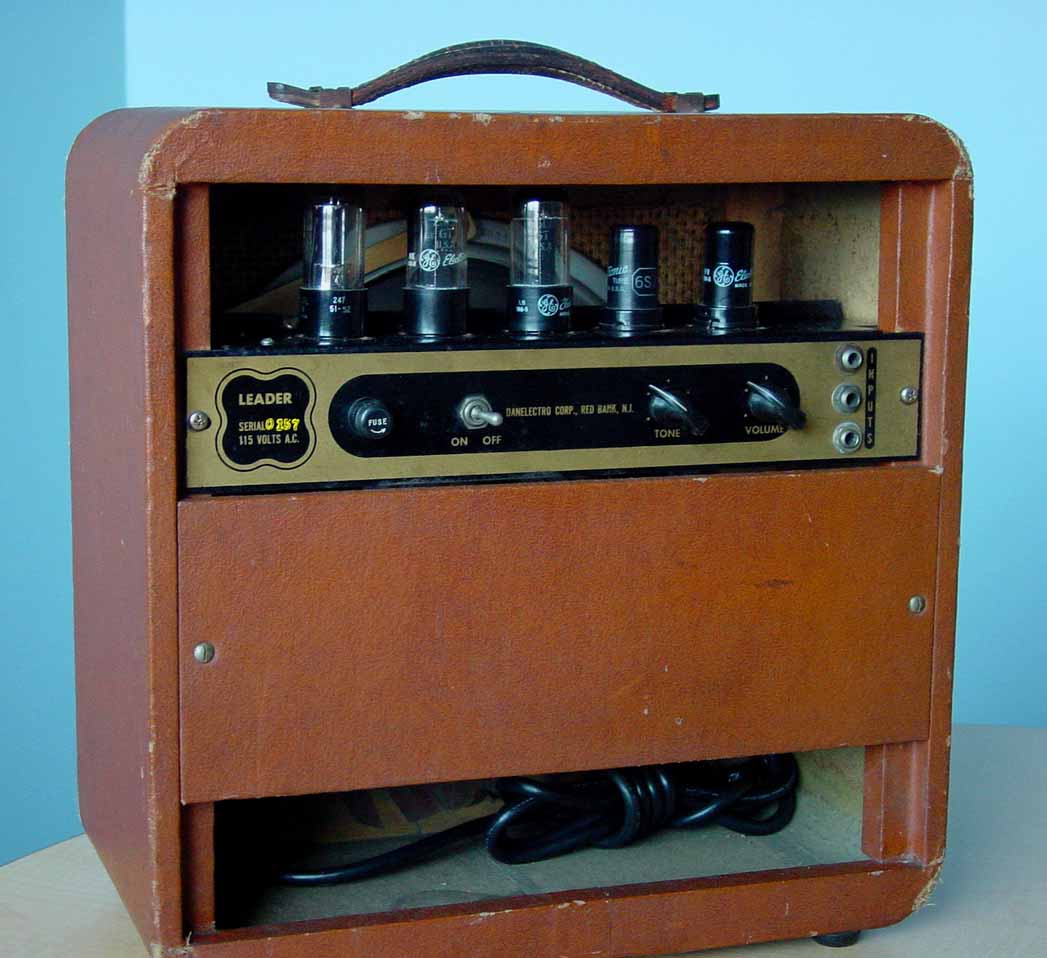

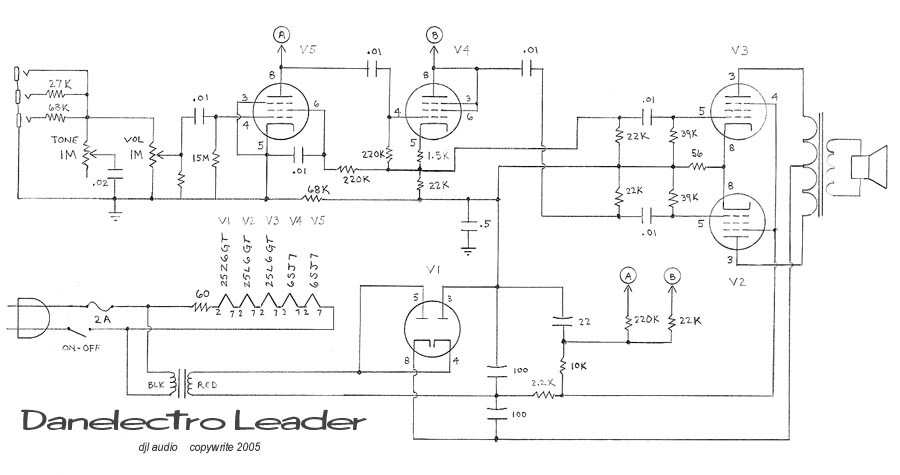

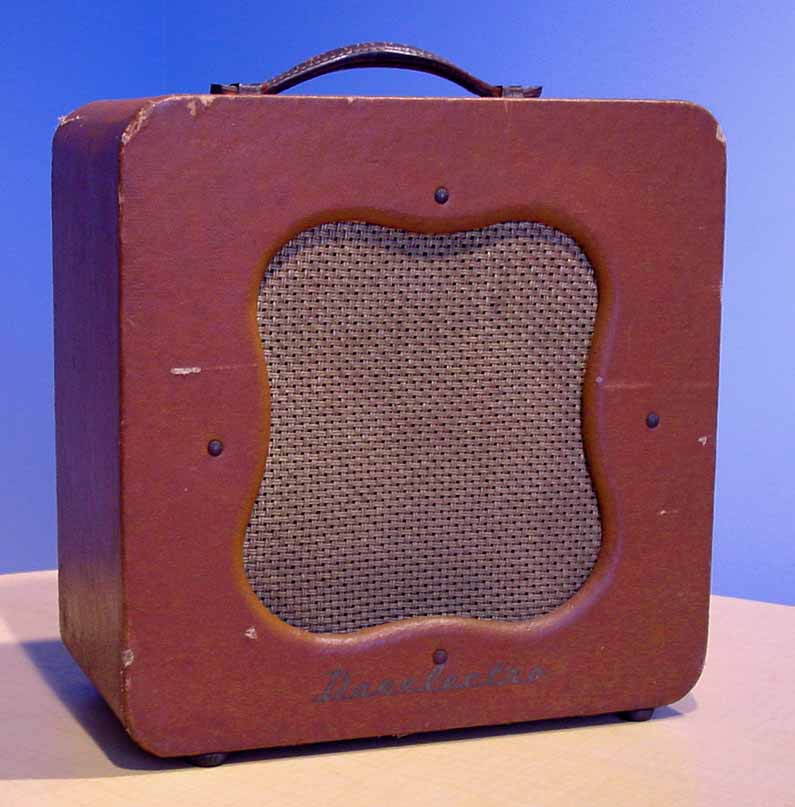

DANELECTRO LEADER

A real museum piece from the early 50's, restored to original specifications.    An isolation transformer was added to eliminate the hot chassis.
